The Future
The CC3, our latest model, is versatile with options for dual or single outlets, all offering up to 22kW of charging power. Designed for 'Plug & Charge', it's cyber-secure and physically tamper-proof. With built-in WiFi, it manages back-end connection and load balancing for efficient EV charging. CC3 connects via an optional 4G-modem when no WiFi is available and uses dual Ethernet ports for easier installation. CC3 is compatible with various third-party backend systems by OCPP and prepared for V2G and V2X technologies.
;*;Up to 2x22 kW charging capacity, with dual or single outlets;*;Built-in WiFi for easier installation, wireless load balancing and online support;*;Ready for the ‘Plug & Charge’ standard EV drivers want when using public charging;*;Daisy chain power and network cabling for easier, quicker and cheaper multi-outlet installations;*;Prepared for ISO 15118 and OCPP 2.0.1 – the industry’s newest open communication standards;*;Adaptable for diverse applications;*;Variety of connectivity options
| Charging Category | AC charging |
|---|---|
| User interface | LED symbols |
| Connectivity | 4G (optional),2 x Ethernet,Wi-Fi |
| App support | OCPP - Third party |
| Outlet | Single- or dual type 2 outlets |
| Charging current | 32 A |
| Number of phases | 3 Phase |
| Rated voltage | 400 V |
| Load balancing | Load balancing (NANOGRID™ Internal) is included between the dual outlets of the EVSE, Options for other load balancing solutions between several units (NANOGRID™ HOME, NANOGRID™ AIR, NANOGRID™ CGC). |
| Energy meter | MID approved;Current transformers;Eichrecht** |
| Ground fault detection | MRCD TYPE B 30mA AC,30mA DC |
| Ground fault reset | Semi-automatic |
| Communication protocols | OCPP 1.6/OCPP 2.0.1** |
| Authentication | RFID,APP;Autocharge |
| Impact protection | IK10 |
| Degree of protection | IP54 |
| Compliance | RED;IEC 62196;CE;IEC 61851-1 |
| Dimensions | mm |
| Net weight | 24 kg |
| Cable length | m |
| Ambient operating temperature | -30 °C to +50 °C |
| Warranty | 5 years |
| Warranty information | CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty. |

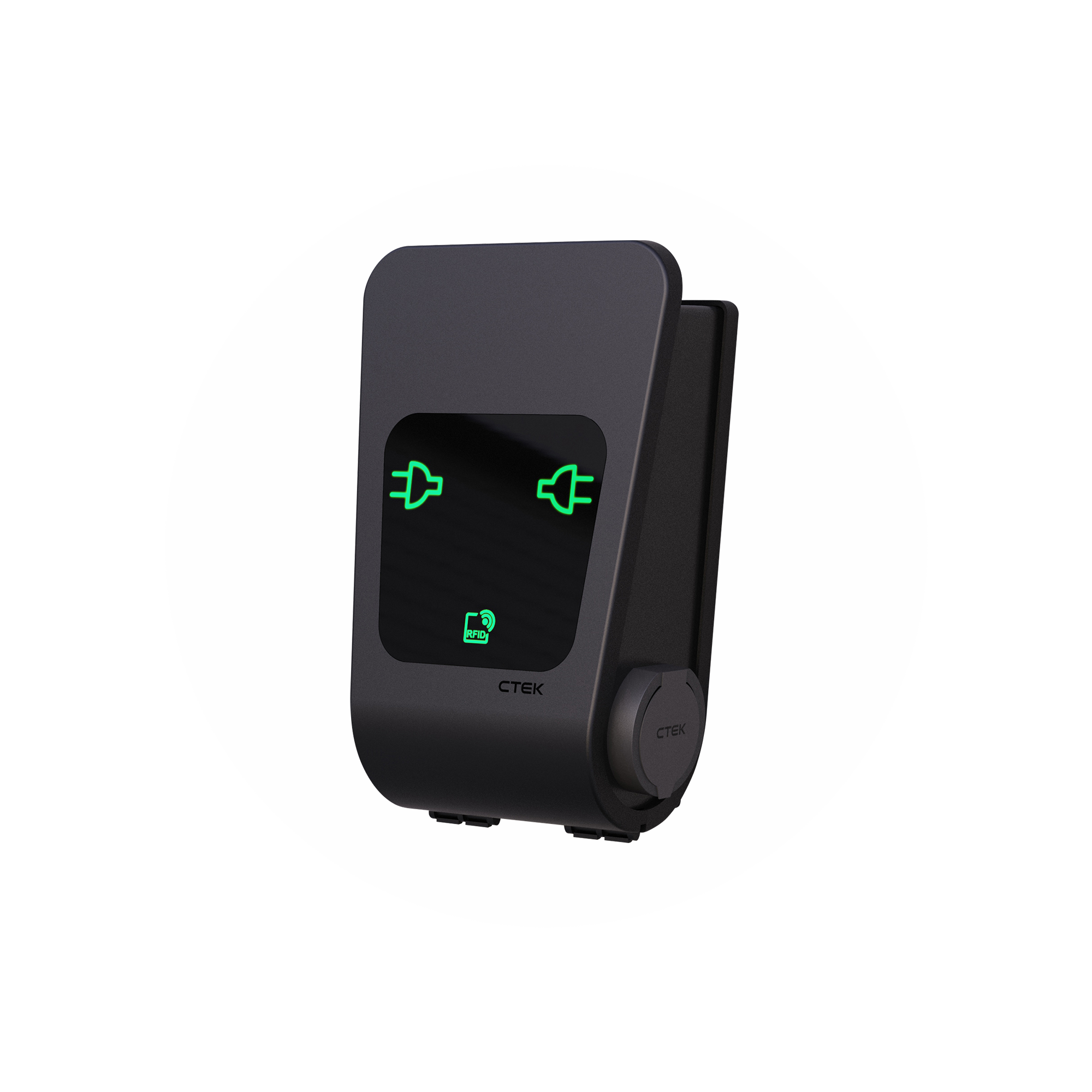

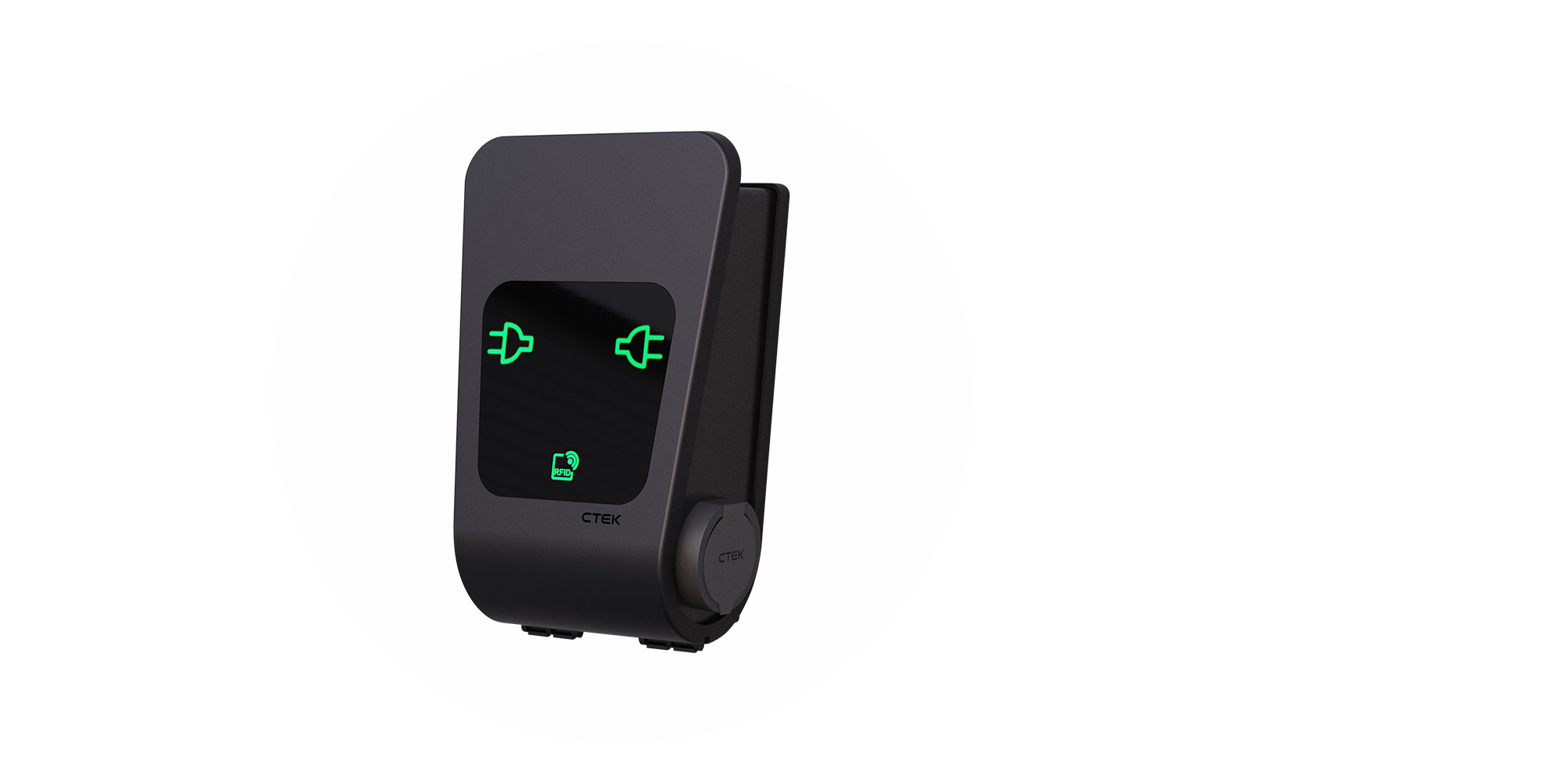

CHARGESTORM® CONNECTED 3
EV Charger
Item No. 40-645
High-power, 22kW, smart EV charger
Up to 22 kW charging per outlet (single or dual)
Built-In Wi-Fi for easy installation and wireless load balancing
Advanced EV charger for home, workplace & fleets
In stock
Out of stock
Back in stock alert
Alert is on!
Subscribe to our newsletter and stay updated on the latest fashion pieces and special offers!
We will send you an email when the product is back in stock again
Unable to subscribe. Try again later.
By signing up, I agree with the data protection policy of Ctek.
CHARGESTORM® CONNECTED 3 combines today's smart charging with the technology needed for tomorrow's EV energy ecosystem. It's the latest update in our award-winning CHARGESTORM® CONNECTED series, designed for easy installation and enhanced control.
Specifications
Charging current
32 A
Outlet
Single- or dual type 2 outlets
Connectivity
4G (optional),2 x Ethernet,Wi-Fi
Communication protocol
OCPP 1.6/OCPP 2.0.1**
Load balancing
Load balancing (NANOGRID™ Internal) is included between the dual outlets of the EVSE, Options for other load balancing solutions between several units (NANOGRID™ HOME, NANOGRID™ AIR, NANOGRID™ CGC).
Warranty
5 years
